The Midea Duo Smart Inverter MAP14S1TBL sets a new standard for energy efficiency and cooling power. Using advanced inverter technology, this unit adjusts its compressor speed to maintain a consistent temperature without the energy spikes of traditional ACs, leading to significant energy savings. Its innovative dual-hose design ensures fresh air intake and efficient heat exhaust, cooling your room rapidly. With integrated smart features, you can monitor and control your climate from anywhere, ensuring your home is always perfectly cooled before you arrive.
Specifications:
- SEER: A++
- SCOP: A+
- Cooling Capacity: 3.5kW
- Heating Function: Yes
- Energy Efficiency: SEER 6.1, SCOP 4.0
- Noise Levels: 39dB(A) in silence mode
- App Functions: Voice Control (Alexa, Google, Apple Siri…)
- Loading Qty 40HQ: 12K
Key Features
- 3.5 kW (12,000 BTU) cooling capacity
- 3.5 kW heating capacity with heat pump
- Suitable for rooms up to 42 m²

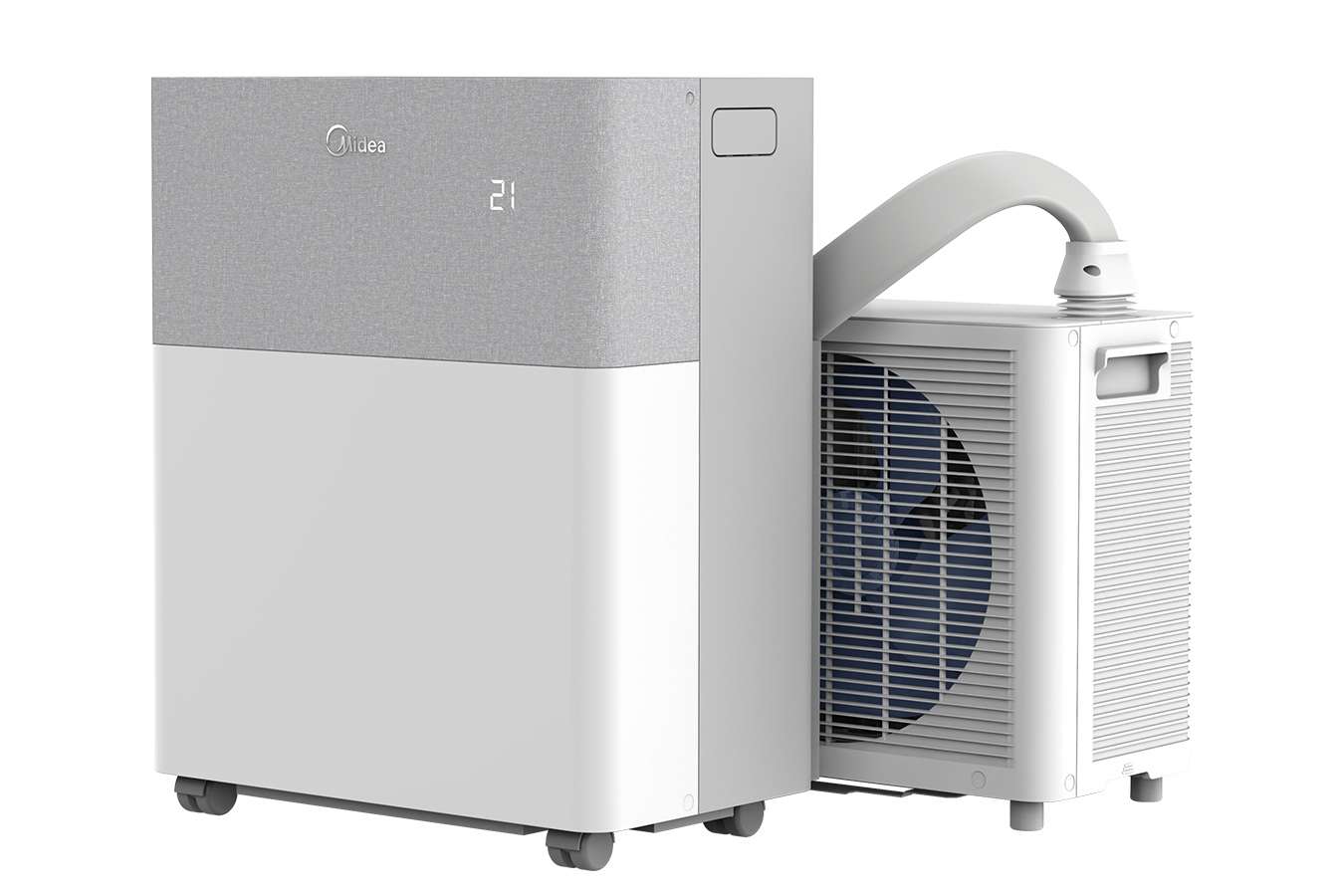

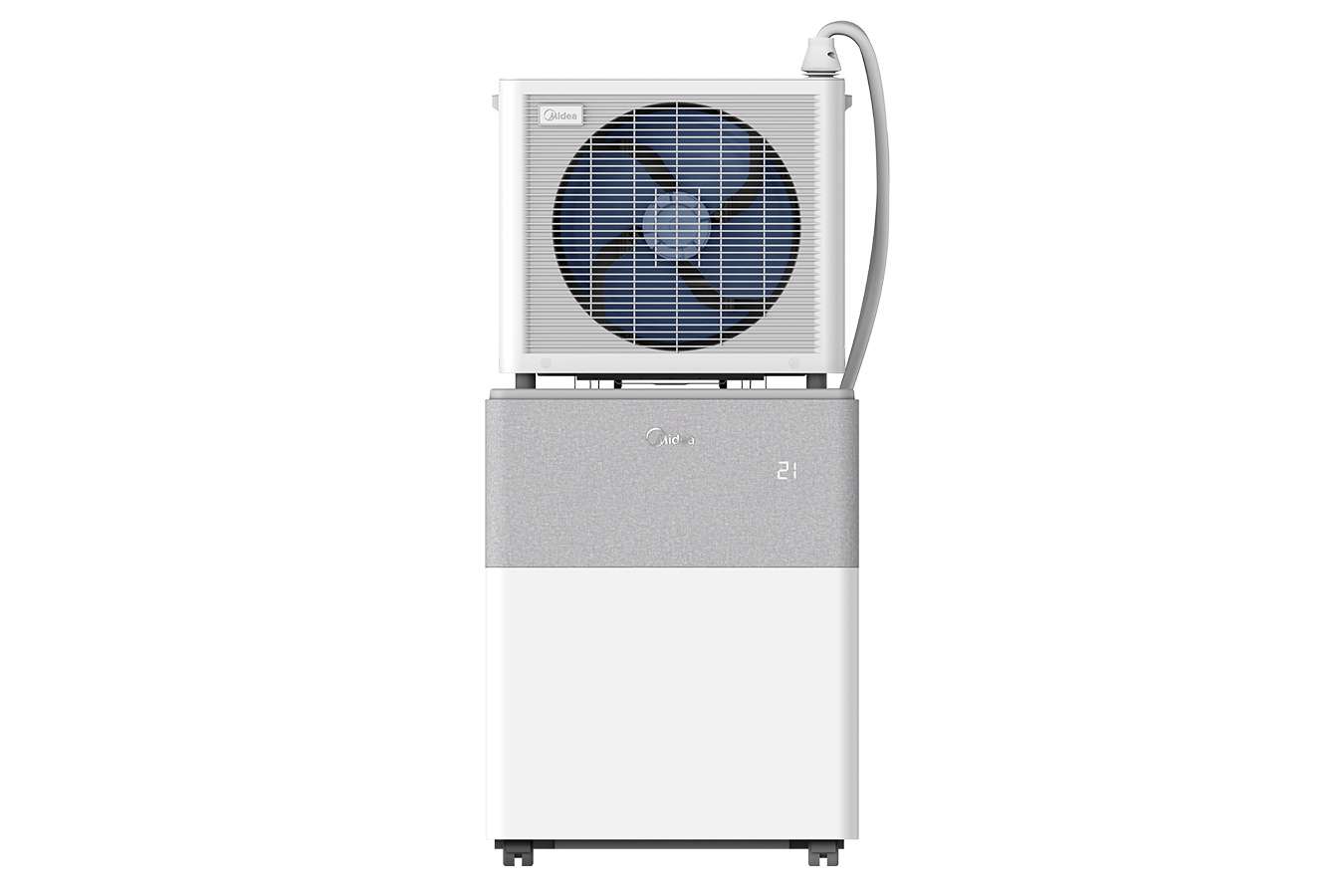

- Portable split design with indoor and outdoor units
- No permanent installation or drilling required
- Energy-efficient inverter compressor
- A++ Cooling Energy Rating
- A+ Heating Energy Rating
- Quiet operation from 39 dB(A) in Silent Mode
- 4 operating modes: Cooling, Heating, Dehumidifying & Fan

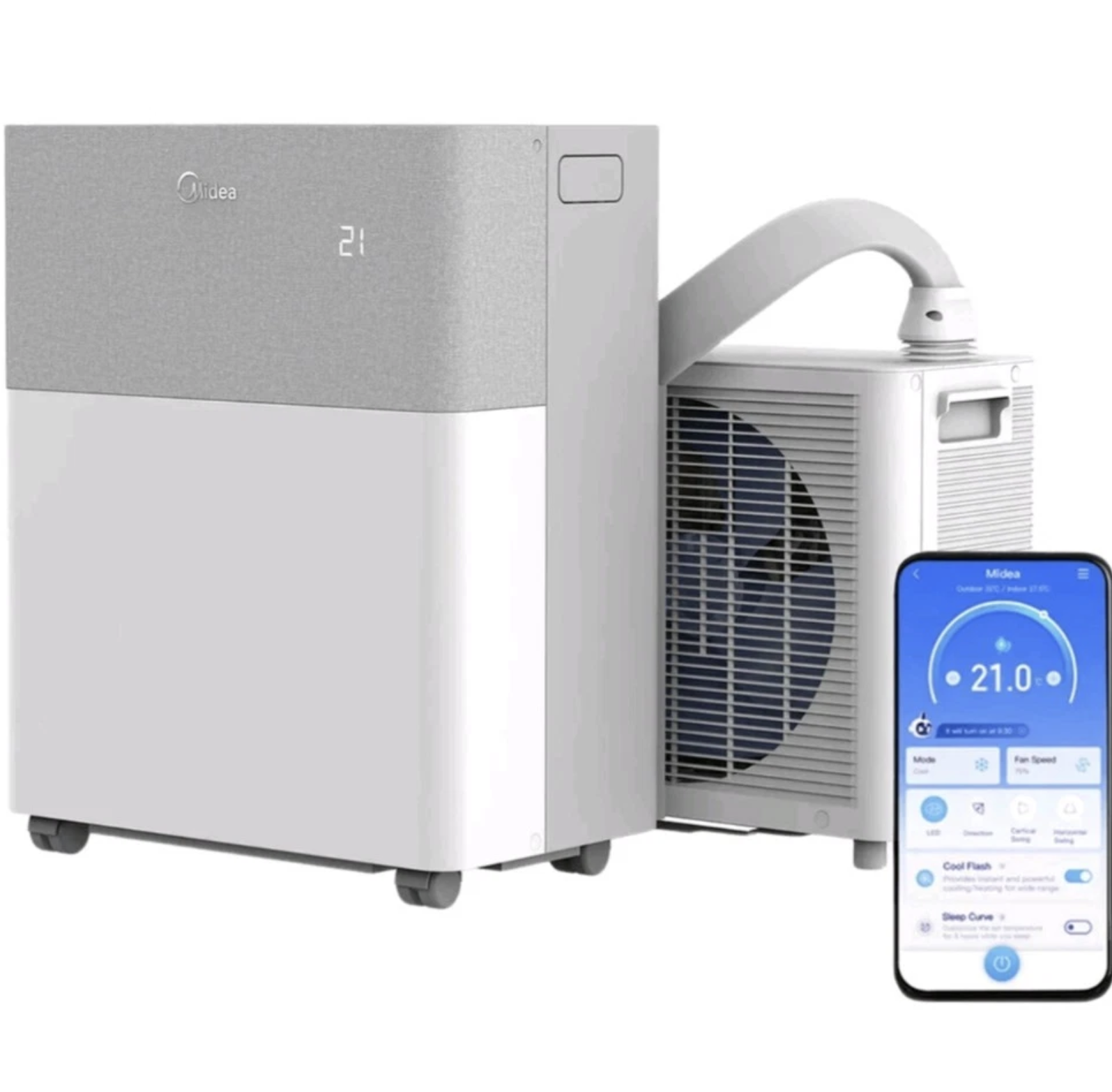

- Wi-Fi smart control via the Midea SmartHome App
- Remote control included
- Four caster wheels for easy mobility
Specifications
| Specification | Details |
|---|---|
| Brand | Midea |
| Model | PortaSplit |
| Cooling Capacity | 3.5 kW (12,000 BTU/h) |
| Heating Capacity | 3.5 kW (12,000 BTU/h) |
| Power Supply | 220–240V, 50Hz, Single Phase |
| Cooling Efficiency | A++ (SEER 6.1) |
| Heating Efficiency | A+ (SCOP 4.0) |
| Indoor Airflow | 420 / 390 / 350 m³/h |
| Indoor Noise Level | 39–49 dB(A) |
| Indoor Sound Power | 59 dB(A) |
| Outdoor Noise Level | 56 dB(A) |
| Refrigerant | R32 |
| Cooling Operating Temperature | 10°C to 45°C |
| Heating Operating Temperature | -10°C to 30°C |
| Indoor Unit Dimensions | 646 × 518 × 340 mm |
| Outdoor Unit Dimensions | 438 × 500 × 260 mm |
| Indoor Unit Weight | 32.5 kg |
| Outdoor Unit Weight | 9.9 kg |
| Total Net Weight | 45 kg |
Packing Details
| Item | Specification |
|---|---|
| Packaging Dimensions | 850 × 745 × 575 mm (H × W × D) |
| Gross Weight | 45.5 kg |
| Package Includes | Indoor unit, outdoor unit, integrated refrigerant hose, window bracket, window sealing kit, remote control, user manual and installation accessories* |
Product Usage Instructions:

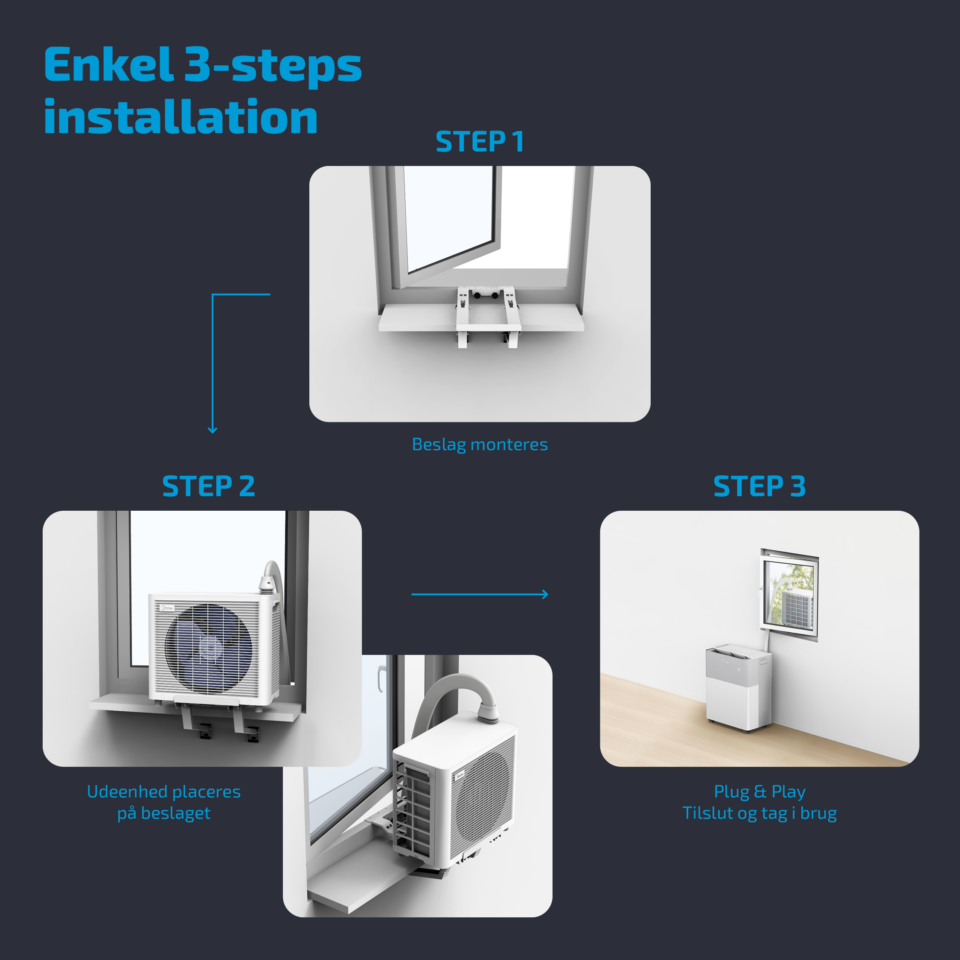

Easy Set-Up Process:
- Attach the bracket to the designated area.
- Place the outdoor unit on the bracket securely.
- Connect the necessary hoses to the indoor unit.
- Install the Hot Air Stop to ensure proper air circulation.
- Power on the PortaSplit and adjust settings for your desired comfort level.
Heating Mode:
The PortaSplit features a heating function using heat pump technology with a SCOP of 4.0. To activate heating mode, simply select the desired temperature setting on the control panel or through the SmartHome app.
Intelligent Energy-Saving:
Utilize the advanced AI algorithm to optimize energy consumption and maintain a consistent temperature throughout the day. The PortaSplit intelligently adjusts settings to provide efficient cooling or heating while saving energy.

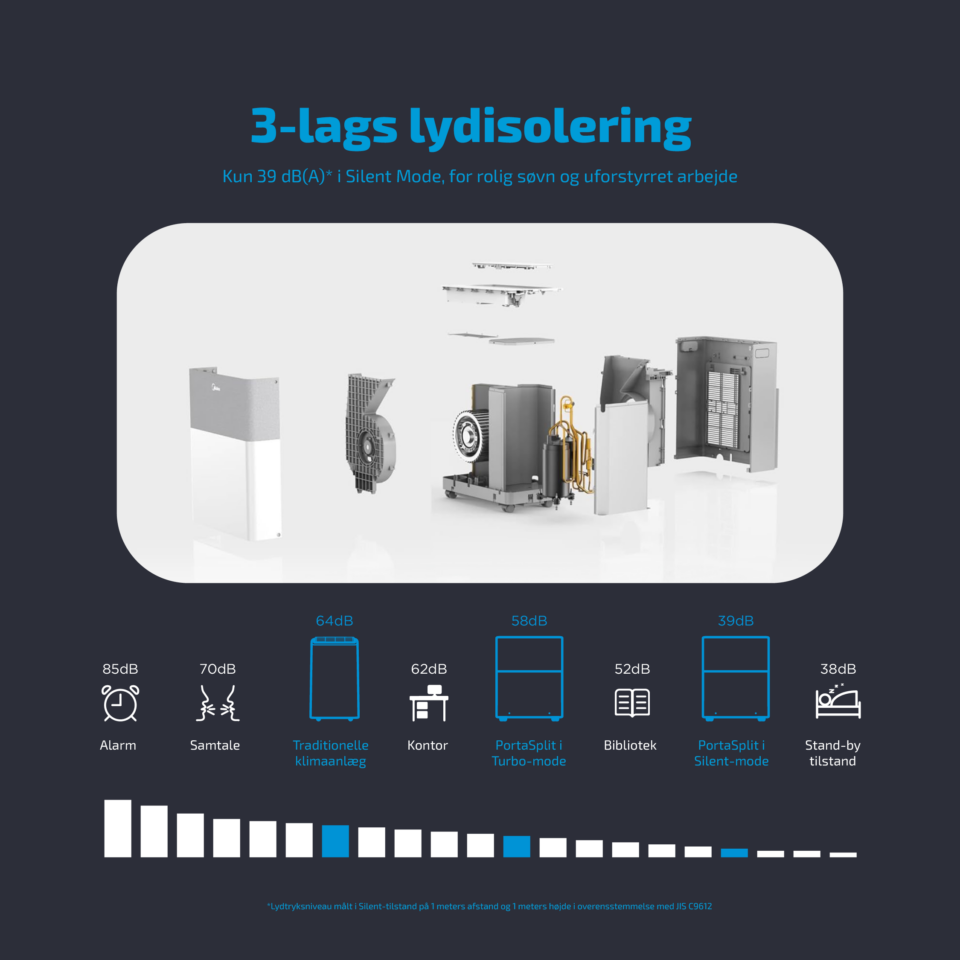

Silent Operation:
In silence mode, the PortaSplit operates at a low noise level of 39dB(A), ensuring quiet operation for optimal comfort during sleep or quiet activities.
Visualize Your Energy Consumption:
Monitor and manage your energy usage with the SmartHome app, allowing you to track and adjust settings for efficient operation.
Safety Ensurance:
The robust connection hose and secure bracket ensure safe installation and support for the outdoor unit. Follow the provided guidelines for proper setup to prevent any accidents or malfunctions.
FAQ:
Q: Can the PortaSplit be used in different window types?
A: Yes, the PortaSplit is suitable for normal windows, French balcony windows, and attic rooftop windows, providing versatility in various scenarios.
Q: How does the PortaSplit compare to a traditional split AC?
A: The PortaSplit offers similar efficiency and performance to a conventional split AC, with the added benefit of portability and easy installation without the need for permanent fixtures.
